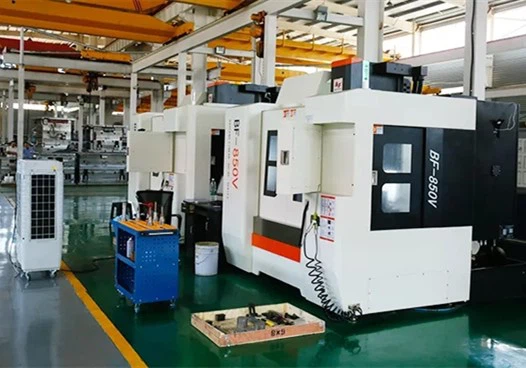

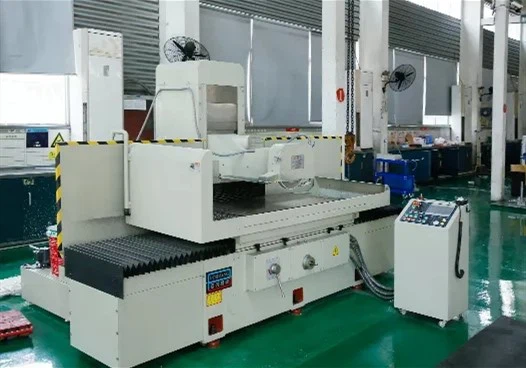

Zhenke Mold currently has more than 20 sets of various mold steel processing equipment such as CNC machine tools. Mold assembly machines can replace manual assembly of large molds, thereby improving mold quality.
Strict Quality Inspection

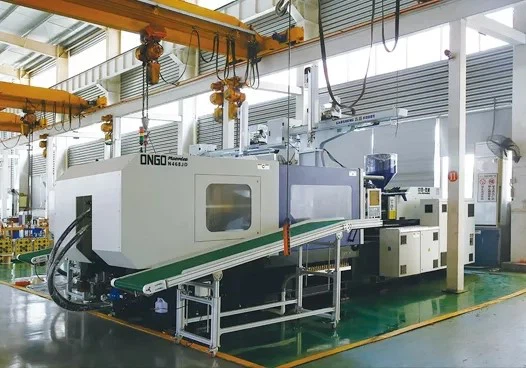

We use 7 injection molding machines of various sizes to conduct mold trials to check whether the mold is running well. We will be responsible for any quality issues.
High Return on Investment
The molds we produce adopt a needle valve hot runner system, which helps to accurately control the flow of melt, providing customers with higher production efficiency and lower production costs.
Wide Range of Services
Our company has more than five years of experience in mold design and production. Since its birth, it has provided products and services to more than 30 countries and regions around the world and has more than 100 partners.

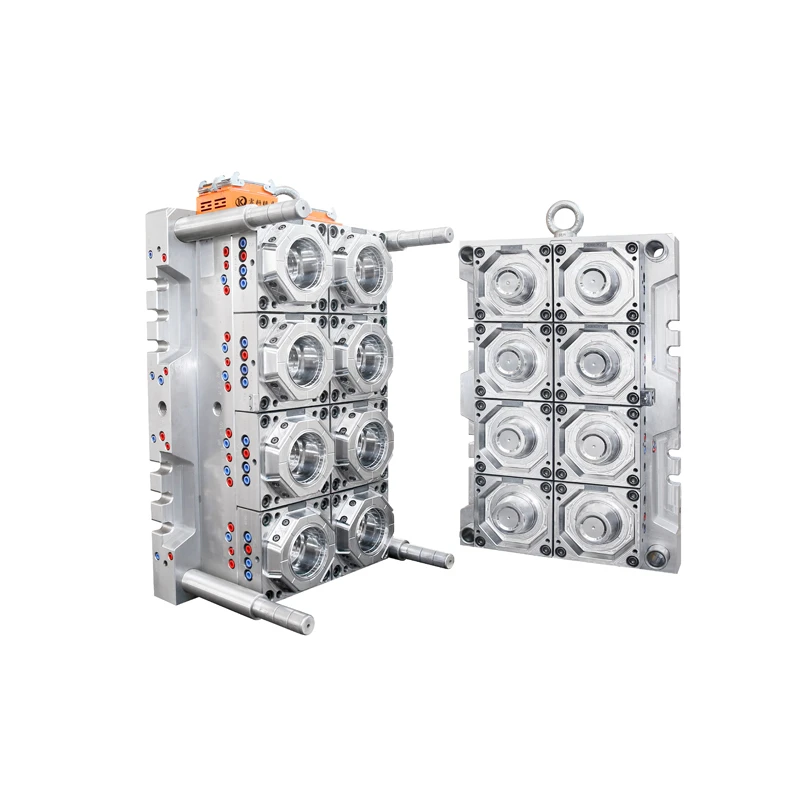

Thin wall injection molding is a specialized form of conventional injection molding that focuses on mass-producing plastic parts that are thin and light so that material cost savings can be made and cycle times can be as short as possible. Shorter cycle times mean higher productivity and lower costs per part.
Advantages of Thin Wall Mould
Increased Production Efficiency
Thin wall container molds have a faster cycle time, which means more containers can be produced in a shorter period of time. This results in increased production efficiency and cost savings.
Improved Product Performance
Thin wall containers are lighter and more durable than traditional containers, making them ideal for use in packaging applications. They are also less likely to crack or break, making them safer for consumers to use.
Cost Savings
Thin wall container molds are often less expensive to produce than traditional molds, and they require less material to manufacture each container. This leads to cost savings on raw materials and reduced production costs.
Versatility
Thin wall containers can be manufactured in a variety of shapes and sizes, making them suitable for a wide range of packaging applications. They can also be produced in different colors, making it easier to identify the contents of each container.
Enhanced Product Appearance
Thin wall containers have a sleek and modern appearance that can enhance the overall look of a product and increase its market appeal.
Application of Thin Wall Mould
Packaging Industry
Thin Wall Moulds are extensively used for producing thin-walled plastic packaging containers, such as cups, trays, food containers, lids, and disposable cutlery. These enable fast production cycles and high-volume output, making them ideal for mass production in the packaging industry.
Consumer Electronics
Thin Wall Moulds are employed to manufacture components for consumer electronics, including mobile phone casings, laptop parts, TV bezels, and remote control housings. They allow for precise molding of intricate and delicate parts with thin walls and complex geometries.
Automotive Industry
Thin Wall Moulds play a vital role in the automotive sector, particularly in the production of interior components. Thin-wall molding enables lightweight and cost-effective solutions while maintaining structural integrity.
Medical Devices
The medical industry benefits from Thin Wall Moulds as they can produce components for medical devices with high Thin Wall and consistency. Examples include syringe barrels, medical tubing, connectors, and device casings. The fast cycle times and high repeatability of thin-wall molding machines are critical in meeting the demands of the medical sector.
Housewares and Appliances
Thin Wall Moulds are utilized for manufacturing various household items like storage containers, kitchenware, cutlery, and small appliance components. They help enable the production of lightweight, durable, and aesthetically appealing products with thin walls and intricate designs.
Electrical and Lighting Industry
Thin Wall Moulds are involved in the production of electrical connectors, switches, sockets, and lighting components. They facilitate the creation of complex, thin-walled parts with excellent dimensional accuracy, meeting the requirements of the electrical and lighting industry.
Using Tips for Thin Wall Mould
Pay Attention to Your Material
Material choice is always important for injection molding, but it’s essential when creating parts with thin walls. Some materials, such as polycarbonate (PC), are sticky, making filling molds with thin walls difficult. However, certain thermoplastics will flow more easily through narrow sections of a mold, such as high-density polyethylene (HDPE), low-density polyethylene (LDPE), nylon (PA), and polypropylene (PP). Liquid silicone rubber (LSR) also fills easily, though it may increase the risk of flash along your mold’s parting lines. There’s no one-size-fits-all material for thin wall injection molding, so consider your part’s geometry and application needs when comparing materials. Also, try to choose a material that won’t accelerate mold wear when injected at high speeds.
Consider Your Mold Material
In addition to thinking about your product’s material, you’ll need to carefully consider your mold material. While P20 steel is often used in conventional injection molding applications, it may not be strong enough to withstand the high pressures, wear, and erosion associated with injection molding parts with thin walls. Instead, you’ll need a more robust material, such as 718, H-13, D-2, or another tough steel. It’s important to note that you may end up paying 30%-40% more for a tool made of a robust material compared to one made of P20. However, that additional cost can be easily offset by the tool’s increased performance and longevity.
Have Uniform Wall Thickness
If possible, ensure your design has uniform wall thickness throughout. This will allow for even cooling and help prevent warping, sink marks, flow lines, and short shots. For best results, keep your wall thickness a minimum of 0.9mm (0.0354”) or greater.
Add Ribs or Gussets
You can include ribs in your part design if you need to strengthen your part or increase its rigidity. While ribs are generally half the thickness of the wall they support, your ribs may be as thick as your wall if your wall is less than 1mm thick. However, sink marks and read through may be visible where the rib intersects the wall. Incorrectly designed ribs can result in warp, sink marks, voids, and breakage, causing more trouble than they’re worth. To avoid these problems, design ribs to be 60% of wall thickness or less, keep base radii small, space ribs apart by three times the wall thickness, and include 1°of draft or greater.
Include Radii
Sharp corners are never good in injection molding, as they can cause parts to stick to the tool during the ejection process. They also require more pressure to fill and can result in voids if there isn’t sufficient pressure, so it’s important to include radii and round out internal and external corners and edges. Since the mold cavity is incredibly narrow in thin wall plastic injection molding, avoiding sharp corners and edges is even more critical to ensure a smooth flow of material and a clean ejection.
Pay Attention to the Temperature
Mold temperature is key to the injection molding process and can drastically impact how the final product looks and feels. A warmer mold allows the injected plastic to flow more easily, resulting in better surface quality. When it comes to cooling, place non-looping cooling lines directly in your core and cavity blocks to keep your mold’s surface temperature as consistent as possible. Additionally, try to increase the amount of coolant flow through your tool, rather than decreasing coolant temperature, and ensure the temperature difference between your delivery coolant and return coolant is less than 10° F.
Design Gates with Care
Since thin wall injection molding involves higher injection speeds and pressures, gates should be larger than the part’s walls to help minimize gate wear and material shear. This will also help prevent or eliminate freeze-off from occurring before packing is achieved. If your gate connects to a thin wall with a pinpoint, hot-drop, or sprue, you can reduce stress at the gate and improve the filling process by including a gate well.
Factors to Consider Before Choosing a Thin Wall Mould
For thin wall injection molding, it is recommended to use materials with high melt flow rates (MFR) as they can fill the mold more easily. In thin wall injection molding, polypropylene (PP), polycarbonate (PC), nylon (PA), and polyethylene (PE) are commonly utilized. When it comes to thin-wall injection molding, keep in mind that there isn't a universal material solution. It's important to carefully evaluate the geometry and application requirements before comparing materials for your exact needs. When choosing a material, selecting one that can handle high-speed injection without causing excessive mold wear is crucial.
A uniform wall thickness in the mold will improve cooling and reduce any forms of warping. By ensuring consistency throughout the mold, you can enhance the overall quality of the final product. Additionally, strategically placed vents are eliminate air traps, preventing any defects that may arise from trapped air pockets. Lastly, carefully locating gates enables a uniform flow of material, further enhancing the efficiency of the molding process. These factors must be considered with Thin Wall and attention to detail to optimize the performance of your mold.
You may run into issues caused by excess plastic seeping out of the mold without sufficient clamping force. Regularly inspect and maintain the mold to ensure no damages are present. Keeping the mold closed under high injection pressures prevents unwanted problems like flashes or breaks in the design. Burr, a raised edge, commonly appears at the junction of male and female molds. This happens when there is poor mold clamping or improper processing of mold surface corners. The inadequate clamping force, high material temperature, and high pressure often result in insufficient molding temperature. Remember, applying adequate clamping force is vital for a successful molding process.
Accurate filling in thin wall injection molding depends on the injection speed. Reducing the thickness of a plastic part significantly impacts the condensate layer's influence on flow. This influence increases exponentially as the thickness decreases. Thin wall injection molding machines need a high injection rate to avoid defects. This will ensure the plastic melt fills the cavity faster than the condensation layer can grow or slow down. Completing the filling action before closing the flow section allows for precise injection molding of thin-walled plastic parts. If there is inadequate filling, it can result in short shots. However, this issue can be resolved by simply increasing the injection speed or pressure. Also, a well-designed gating system is in place and maintains the material's melt temperature at its optimal level.
The thin wall injection molding process may experience warping during the cooling process. This can result in dimensional issues with your final product. To mitigate this, optimize the mold cooling system to ensure uniform cooling. Additionally, adjusting the holding pressure and time and maintaining a consistent wall thickness throughout the part can help prevent warpage and achieve better results. Uneven wall thickness or flesh thickness in molded products can occur due to variations in hot-melt plastics' cooling or curing shrinkage. Certain areas, such as the back of ribs or edges with side walls, are susceptible. For better results, maintain about 2/3 of the original thickness. You can achieve this by considering various adjustments, such as improving the runner thickness or increasing the size of the gate and exhaust. Also, consider raising material temperature, increasing injection pressure, or extending holding time.
