Cap Mould

Zhenke Thin Wall Mold: Your Professional Cap Mould Manufacturer!

Taizhou Zhenke Thin Wall Mold Co., Ltd. is a manufacturer specializing in the production of thin-wall molds, PET preform molds, and packaging molds for medical and high-end daily chemicals. Our company currently has more than 40 senior technical personnel and is a young and dynamic technology-based factory. We provide customers with comprehensive services such as product processing solutions, technical guidance, and after-sales maintenance.

Our Advantages

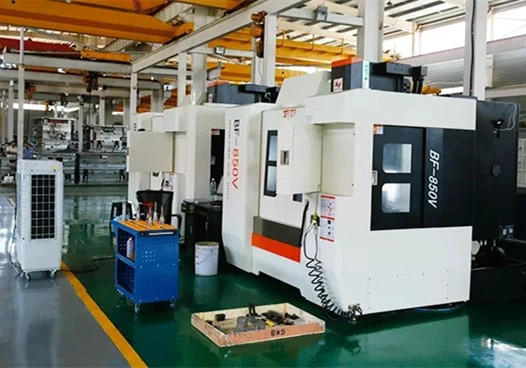

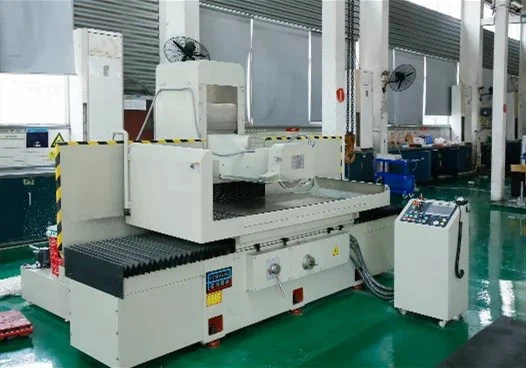

Advanced Processing Equipment

Zhenke Mold currently has more than 20 sets of various mold steel processing equipment such as CNC machine tools. Mold assembly machines can replace manual assembly of large molds, thereby improving mold quality.

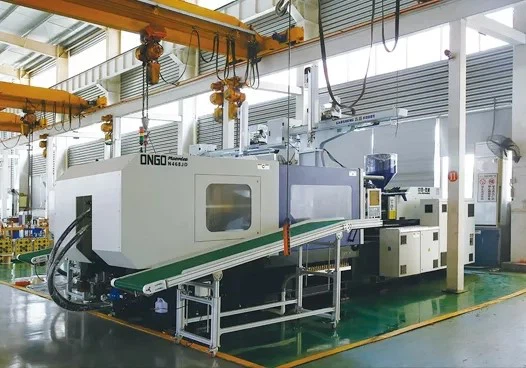

Strict Quality Inspection

We use 7 injection molding machines of various sizes to conduct mold trials to check whether the mold is running well. We will be responsible for any quality issues.

High Return on Investment

The molds we produce adopt a needle valve hot runner system, which helps to accurately control the flow of melt, providing customers with higher production efficiency and lower production costs.

Wide Range of Services

Our company has more than five years of experience in mold design and production. Since its birth, it has provided products and services to more than 30 countries and regions around the world and has more than 100 partners.

Introduction to Cap Mould

The cap mold is typically made of high-quality steel and is designed with Thin Wall to ensure that each cap produced is identical in size, shape, and quality. The mold is used in a compression molding machine, where plastic material is injected into the mold cavities and is compressed to the required shape and size.

Advantages of Using Cap Mold for Production

01/

Hot Runner Technology
Our Cap Mould incorporates hot runner technology, which enables efficient and uniform heating of the mould cavities. This technology eliminates the need for runners, reducing material waste and improving productivity. With precise temperature control in each cavity, our mould ensures consistent and reliable production of caps, minimizing variations and defects.

02/

Injection Moulding Excellence
We leverage the power of injection moulding technology to achieve excellent results with our Cap Mould. Injection moulding offers fast cycle times, high production volumes, and exceptional repeatability, allowing for consistent and efficient cap production. With our mould, you can achieve superior dimensional accuracy, smooth finishes, and precise thread details on your caps.

03/

Cavity Options
To meet different production needs, our Cap Mould is available in various cavity options, including 12 cavity and 32 cavity configurations. This flexibility allows you to choose the mould that aligns with your desired production capacity, ensuring maximum efficiency and cost-effectiveness.

04/

Flip Top Cap Capability
In addition to standard caps, our Cap Mould is compatible with flip top caps, which are popular in personal care and household products. Whether you require single-use or reusable flip top caps, our mould can accommodate your specific requirements, providing you with a versatile solution to cater to diverse market demands.

Application of Cap Mould

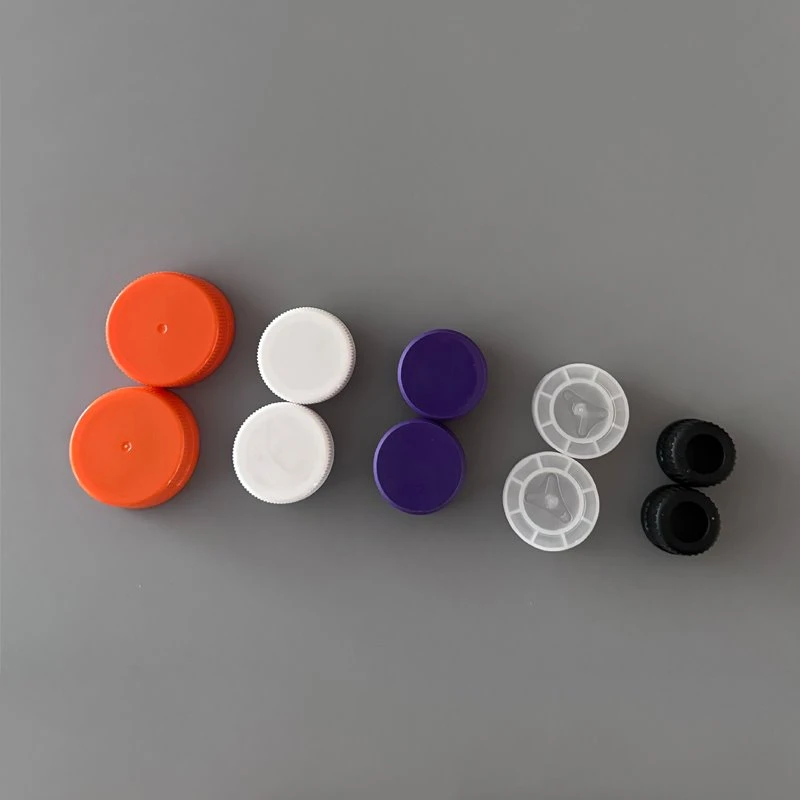

Carbonated Soft Drinks
Cap molds are utilized for producing caps for carbonated beverages like soda, sparkling water, and energy drinks.

Juices and Dairy Products
Cap molds find application in the production of caps for juice bottles, milk, yogurt, and other dairy products.

Medicine Bottles
Cap molds are employed to manufacture child-resistant or tamper-evident caps for medicine bottles, ensuring proper sealing and security.

Condiments and Sauces
Cap molds are employed for manufacturing caps for ketchup bottles, mustard bottles, salad dressing bottles, and other condiments and sauces.

Shampoo and Conditioner Bottles
Cap molds are employed to manufacture caps for bottles of shampoo, conditioner, and other hair care products.

Lotion and Cream Containers
Cap molds find application in producing caps for lotion bottles, cream jars, and other skincare and cosmetic products.

Injection Molding Process with Cap Mould

Mold Design and Preparation

The injection molding process begins with meticulous mold design. We partner with skilled engineers who create precise molds, considering factors such as cap dimensions, material properties, and production volume. Once the mold design is finalized, it undergoes fabrication using specialized technology to ensure accuracy and durability.

Material Selection

Choosing the right material is crucial to achieving the desired cap properties. Each material possesses specific characteristics, including strength, chemical resistance, clarity, and flexibility, enabling customization based on industry requirements. What other requirements are important to pay attention to when choosing plastic material for the closure? It depends on application. Certain resins bring certain properties to the table. For example, some customers perform "drop tests" on their packages and need a cap more resistant to breaking. In that case, we use a blend of polypropylene and polyethylene (copolymer polypropylene). There’s a specification window that any resin must fit within to successfully run through our molds (resin melt flow rate, for example). Some molds are more sensitive to resin changes than others.

Melting and Injection

The selected plastic material is carefully measured and fed into an injection molding machine. Inside the machine, a heated barrel melts the plastic pellets to a precise temperature. Once molten, the material is injected under high pressure into the mold cavity through a runner system, filling it completely and taking the shape of the cap.

Cooling and Solidification

After the mold cavity is filled, the molten plastic begins to cool and solidify. Cooling time varies depending on factors like material type, wall thickness, and complexity of the cap design.

Ejection and Finishing

Once the plastic has solidified, the mold opens, and the newly formed caps are ejected using ejector pins or plates. Post-ejection, the caps may undergo additional processes, such as trimming, deflashing, and surface treatments, to remove any excess material or imperfections.

Materials Compatible with Cap Mold

Polypropylene Injection Molding (PP)
PP is a low cost, lightweight polymer that has excellent chemical resistance. Polypropylene is tough, has good resistance to fatigue, and can be reinforced with glass fiber or minerals to enhance mechanical properties.

High Density Polyethylene (HDPE)
A versatile, workhorse thermoplastic polymer ideal for consumer and industrial products, toys, storage containers, sporting goods, appliances, and milk crates.

Low Density Polyethylene (LDPE)
LDPE is a softer version of HDPE and popular in manufacturing consumer and industrial products.

Polyvinyl Chloride (PVC)
PVC is lightweight compared to metal pipe that it has replaced in many applications, but is heavier than most other grades of plastic. PVC is widely used in water, sewer, windows, siding, and other building products.

Polyethylene Terephthalate (PETE)
PETE is very strong for its lightweight. It is most commonly used thermoplastic polymer in the world and is better known by the trade name “polyester.”

Polystyrene
Commonly used for office products, food processing and storage, consumer products, and construction.

High Impact Polystyrene (HIPS)
HIPS is a versatile, economical, impact-resistant plastic.

Maintenance Tips for Cap Mould

Molds are one of the major parts of plastic injection molding projects. The suitability and quality of molds are highly significant in your injection molding process. A well-designed mold makes a difference in the overall cost of injection molding. Molds are an investment to plastic manufacturers and engineers. Routine maintenance of molds is vital to protect your investment. Like other tools and machinery, your mold undergoes depreciation. However, the rate of depreciation varies with the maintenance and way of use. Routine maintenance ensures that you can make the best use of the mold. With regular maintenance, your regular operation does not cause stress to your mold. It is important to set some rules to guide mold maintenance and operation. Daily maintenance does not take much time. You need to dismantle the molds, and the spare molds have to be made ready during the maintenance task. It ensures reduced downtime at the time of producing parts.

Preventing Maintenance Tips
● Protect your mold from rusts caused by water condensation, water leakage, hand marks, and rain marks.
● Prevent fracture and other types of collision to your injection mold.
● Missing gaskets, pull rods, and other components can cause damage, so your mold needs protection.
● Keep the mold free from burrs resulting from hand wiping, knife contact, and nipper contact.
● Avoid compression to your molds resulting from residues of the product.
● Prevent damages from a high level of pressure.

Basic Steps for Mold Maintenance
● Check the plates, gates, cavities, runners, and other parts of the plastic injection mold. Do it regularly for easy detection of potential issues.
● Compressed air helps remove unwanted materials like dirt from the mold.
● Clean the mold parts with the proper application of a non-toxic solvent.
● Lubrication is also important for preventing rust in your plastic injection mold.
● Check for the water lines and hot runners to identify the potential issues, as they cause performance complications.
● If you need to store the injection mold, ensure it is dry. Moreover, plates must be separated, while the system should be lubricated and cleaned properly. Other parts, like the springs and pins, must be replaced or tightened.
● Documented schedules for mold maintenance
● Regular maintenance of molds with thorough inspections and cleanings is a must after running the molds a couple of cycles. Record details of your maintenance activities. Documentation lets you establish the best standard of instructions for injection mold maintenance, repair, and cleaning.

Considerations for Cap Mould Design

Use the Right Material for the Mold for the Best Cycle Performance
Different mold materials will give you different cycle performances. Because the mold will work only for certain production cycles, you should pick the mold material that can handle the production goal for the bottle cap you would like to make.

Consider Your Injection Molding Cost and Production Goal
For instance, steel mold is better than aluminum mold, but the steel material will be much more expensive if you use it in the tooling process. However, it will likely meet your production goal much better when compared to the aluminum mold.

Will You Use the Design Again Later?
To save time and money in the tooling process, think about the reusability of the mold for the plastic caps. If this is just a once-and-done project, you can use a cheaper mold with a shorter life cycle, such as by using a cheaper mold material, to get this project done. But, if it will be a continuous production project, using a more expensive mold will be beneficial for the long term.

Is It Necessary to Add More Details and Complexities to Your Cap Design?
The more intricate your mold design, the longer it will be for you to complete the tooling process for the plastic cap. It’s best to think through whether you will need some additional design intricacies so that you can save some time and money in the tooling process.

Our Factory

Zhenke Mold is a company that can manufacture Thin Wall molds and has many years of experience in mold design and production. 23,000 square meters of construction area and advanced equipment enable our factory to quickly create value for customers.

Ultimate FAQ Guide to Cap Mould

Q: What is the use of 24-cavity Cap Mold?

A: The 24 cavity cap mold is ideal for industries that require large volumes of caps, such as the beverage, food, and pharmaceutical industries. The use of a multi-cavity mold reduces production time and costs, resulting in a more efficient and cost-effective manufacturing process

Q: What is the importance of injection moulding in manufacturing?

A: Injection moulding plays a critical role in the manufacturing industry for several reasons. It allows for mass production of parts with consistent quality and reduced costs while ensuring product uniformity. This is possible due to automated machinery that can rapidly manufacture significant volumes of components. Producing parts in high volumes is especially beneficial for industries such as automotive, gas and oil, aerospace, construction, electronics, and medical devices. The process also enables flexible design and the creation of complex shapes with a high level of detail. The mould cavity can be customised to create parts with varying thicknesses, textures, and surface finishes. This versatility allows engineers to design innovative solutions to suit the requirements perfectly. The fast production cycles of injection moulding enable efficient turnaround times. Once the mould is set up and the initial parameters are established, the injection moulding machine can produce parts at a rapid pace. This efficiency is essential for meeting tight deadlines and meeting consumer demands.

Q: What is the role of the moulding cap in injection moulding?

A: In injection moulding, the moulding cap keeps the mould secure during the injection. It seals and encloses the molten material within the mould, ensuring it solidifies into the desired shape, and averts potential leaks that might cause flaws in the end product. It also regulates material flow, prevents material waste, and enhances accuracy, quality, and efficiency in the injection moulding process. Finally, the smooth surfaces and contours of the moulding cap enable the easy release and ejection of the moulded part from the cavity. This feature enhances productivity and minimises the risk of damage to the part during the ejection process.

Q: What is the production method of bottle cap?

A: Most plastic bottle caps are manufactured through a process known as injection molding. This process enables each finished one to achieve high Thin Wall, uniformity in size, and shape, and high surface finishing. In this process, the plastic particles are heated in a metal hopper to the point that they become very soft and pliable. It is possible to add color to the plastic at this stage. The softened plastic is then injected under high pressure into a complex structural steel or aluminum mold. Here the glue is filled into the cavities in the mold and cooled enough to harden. Finally, the mold will open for bottle cap removal.

Q: What is injection molding?

A: Injection molding is a versatile and efficient manufacturing process that involves injecting molten materials (resin) into a mold. The molten material is injected under high pressure into a closed mold cavity, where it cools and solidifies, taking the desired shape of the plastic part. Injection molding enables the production of large volumes of identical parts with complex shapes and precise details. For this reason, injection molding has become a popular choice to produce caps and closures due to its remarkable flexibility, efficiency, and ability to consistently produce high-quality components. The beverage packaging industry, in particular, is making use of this manufacturing process to address sustainability trends and regulations, increase design flexibility, and streamline production and costs. With injection molding, each process parameter is independently adjustable, allowing for a larger process window. This larger process window enables better adaptability to different raw materials and color masterbatches.

Q: Will using Cap Mold cause contamination?

A: As there is no need for slitting with Molded-in bridge injected closures, there is also no generation of plastic dust linked to this step. This is a significant advantage for brands that are concerned with the potential contamination of microplastics that could end up in the beverage, food or medicine.

Q: What is the weight of caps produced by Cap Mold?

A: Injection molding enables the production of lightweight products without compromising quality or functionality. The process enables the optimization of wall thickness, resulting in lighter products that meet performance requirements. The elimination of the folded part of the closure reduces the part weight. Although it is true that best-in-class closures from both technologies are often at par in terms of weight, it is not uncommon to see injection molded closures be slightly lighter than compression molding.

Q: Are the bottle caps made with Cap Mold consistent in specifications?

A: Yes. Injection molding offers exceptional process control, resulting in consistent and repeatable part quality. The ability to closely monitor and adjust process parameters ensures that each part produced meets the desired specifications. Once the injection process is established, the process robustness allows for reliable and consistent production runs.

Q: How to choose between injection molding and compression molding?

A: When comparing injection molding and compression molding, it’s clear that while compression molding offers advantages such as fast color changes and lower energy consumption, injection molding is a more versatile and efficient process overall. Injection molding provides design freedom and production flexibility to meet the needs of most beverage brands and converters.

Q: What are the preheating tips for plastic cap moulds?

A: For plastic cap mould, can use the injection shot heat to increase the temperature. There is no need to preheat if the raw material is not difficult to inject. However, for large and medium-sized moulds, the molten material is forcibly injected into the cavity by means of warm material and high pressure. Although can get the parts sample, the damage to the mold itself is actually serious and energy is wasted. The obtained workpiece has large internal stress and severe deformation, and its size is very unstable, which brings trouble to the inspection of the size of the article. Therefore, this method should not be used. At the same time that the mold is preheated after installation, the injection barrel is also warmed when both temperatures meet the requirements, that is, when the mold temperature reaches 30 to 60 ° C or more. When the plastic in the barrel has been molten, and plasticized evenly, it is considered that the temperature is suitable, then the test injection condition is available, and the test mold can enter the test injection stage.

Q: Does Cap Mold have a long service life?

A: Yes. The cavity of the plastic bottle cap mold is made of high-quality mold steel, and the guide sleeve of the mold guide column is lubricated without oil, which has the strong advantage of no pollution and a service life of up to ten million times.

Q: What is the design of Cap Mold's blades?

A: The blade is specially designed. The blade edge of the unscrewing ring of the plastic bottle cap mold adopts a split structure, which can ensure that the blade is not deformed, accurate in positioning, easy to replace, and free from collision and pressure when closing the mold. It perfectly overcomes the defects of poor positioning accuracy, easy damage, and short life of the overall blade of inferior products.

Q: What is the locking function of Cap Mold?

A: Each cavity of the plastic bottle cap mold is self-locking independently, which can ensure the concentricity of the mold. The excellent cooling system can achieve the high efficiency of constant temperature water cooling, and the shear free gate can reduce the labor intensity of workers.

Q: Will Cap Mold affect the quality of bottle caps?

A: The plastic bottle cap mold has a relatively complete and unified quality standard and caliber parameters, so the production of the bottle cap is relatively standardized. It can be said that the plastic cap mold determines the shape and quality of the product.

Q: How to plan the gate of Cap Mold?

A: According to the layout of the plastic parts, the mold is planned into three plates and the point gate is selected. The gate is set at the center of the top of the plastic parts. The point gate can significantly improve the shear rate of the melt, greatly reduce the melt viscosity, and is conducive to mold filling. Moreover, as a packaging container, the plastic parts have a high demand for appearance quality, and the residual traces of the point gate are small, which can ensure the surface quality of the plastic parts; During demoulding, the gate is actively pulled off, facilitating the automation of product production process, improving production power and increasing economic benefits.

Q: What is the process of bottle cap molding?

A: Most plastic bottle caps are manufactured through a process known as injection moulding. In this process, thermoplastic polymer pellets are heated in a metal hopper to the point that they become very soft and flexible. (It would be at this stage that any custom colouring would already be added).

Q: Why is injection Moulding used for bottle caps?

A: Injection molding enables the production of large volumes of identical parts with complex shapes and precise details. For this reason, injection molding has become a popular choice to produce caps and closures due to its remarkable flexibility, efficiency, and ability to consistently produce high-quality components.

Q: What type of plastic are bottle caps made of?

A: The cap is a hard plastic, either high density polyethylene (HDPE) or polypropylene, while the bottle is made of polyethylene terephthalate (PET). These plastics have very different melting points, 260℃ for PET and 140-150℃ for HDPE and polypropylene.

Q: Can Cap Mold add different designs to bottle caps?

A: Producing bottle caps using plastic mold injection requires you to use the extrusion mechanism, as this is the best mechanism that you can use to produce tube-like objects. You can add certain details to your design, such as a specific surface design and branding for the bottle caps, along with internal threading.

Q: Can Cap Mold customize the details of the bottle cap?

A: Yes. Bottle caps can be produced with amazing detail, including threading, dimensions, and embossing. They are made from recyclable plastic and are available in custom colours. Furthermore, these caps can be used as caps for various items including food and medication. Regardless of the packaging materials, a Bottle Cap Mould will allow you to create a custom-made bottle cap for your product.

As one of the leading cap mould manufacturers and suppliers in China, we warmly welcome you to wholesale Chinese cap mould for sale here from our factory. All molds are with high quality and competitive price. Round Container Mold, Milk Tea Cup Lid Mold, 64 Cavity Preform Mold
